Latte FRL PCB

Liam Geyer
  2021-10-01 2021-10-01 Created   2024-07-31 21:38:40 2024-07-31 21:38:40 Updated

Warning! This PCB Hasn’t been finished, produced, or tested, do so at your own risk!

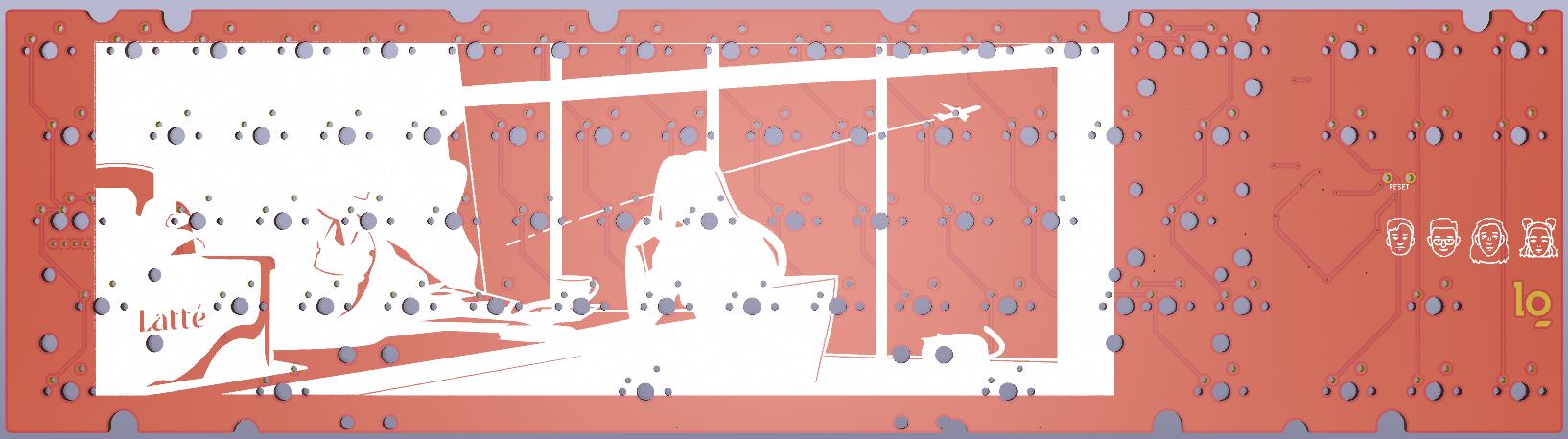

PCB front

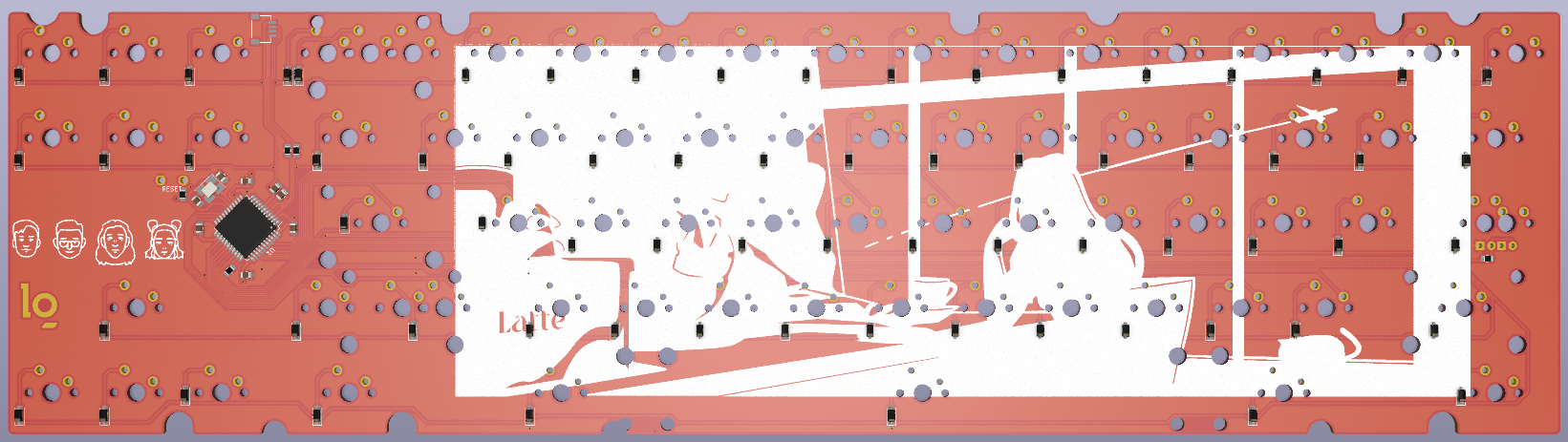

PCB back

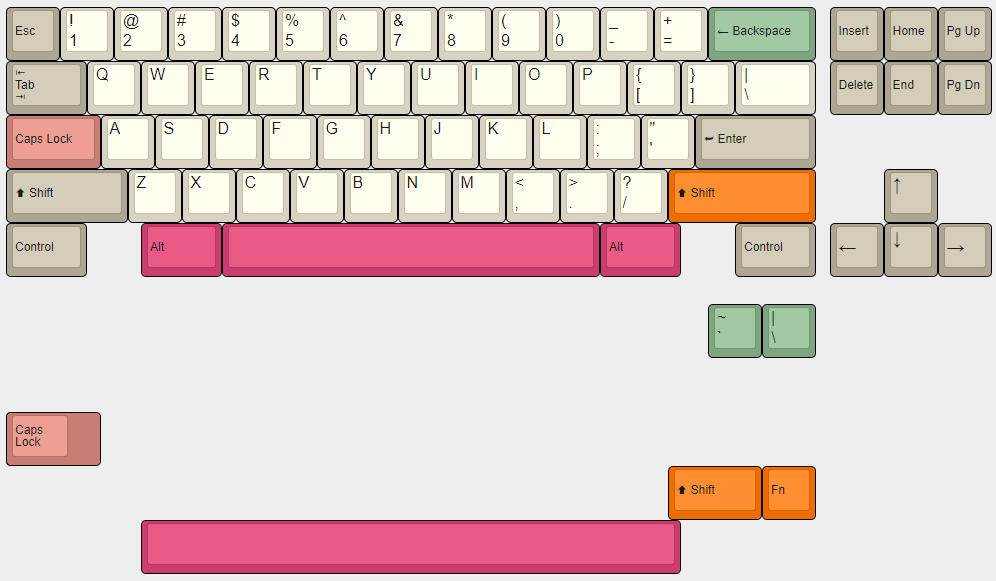

Supported layouts

This is a PCB designed for Keyboard Cafe’s collaboratively designed Latte FRL keyboard. It utilizes a unified-c daughterboard for USB and an ATMEGA 32u4-AU/MU. The PCB Art was designed by Stellaidescope .

GitHub Repo
